Find Tune

By Luke Miller

- 6 minute read - 1258 words

The objective of this project is to create a program that listens to a continuous stream of sound and identifies when a particular song - the target track - is playing. This is similar to how home assistants such as Amazon’s ‘Alexa’ function, except they seek out a different sound (their name). Ultimately, this project will be used to replay the detected positive sound to a speaker, serving as a doorbell amplifier.

The track that I’m interested in classifying is committed into this repository in data/target_tune.wav and sounds like this:

However, there’s no reason you couldn’t adapt this to other target tracks that may interest you. To do this, you’d have to train your own model in order to get it to classify that tune or sound. Going further, this code could be tweaked to create a homemade baby monitor, where the target sound would be crying (extensive testing would be required before deploying on a child!).

How it works

Code

The positive sound, the doorbell, is already saved to data, but we also need a collection of other sounds that it might reasonably come up against. I’ve used a selection of sounds from the ontology created by Google’s AudioSet team to create our own mini corpus of negative examples for this binary classification problem. The sound categories I used are stored in the file data/non-target_categories.txt, which is used in the data creation process.

I use a neural-network based architecture to solve this problem, in particular the “VGGish” network for sound classification (approx. 600 categories) as a warm start, before fine-tuning to this task. (The unusual name takes inspiration from the network architecture designed by the Visual Geometry Group (VGG) of the University of Oxford for their solution to the ImageNet Challenge (computer vision) in 2014.) Google have developed the tools for the pre-processing of sound as well as a TensorFlow model of VGGish, so their project is a dependency of this one. Necessarily, I have had to derive my own model from theirs which is available to download (see “Installation guide” below).

There is a lot of cool mathematics connected to sound classification, which you can read more about here. I also have to tip my hat in the direction of the project from DeviceHive whose code I have adapted for my own production needs (i.e. capturing, processing and classifying sound on the fly).

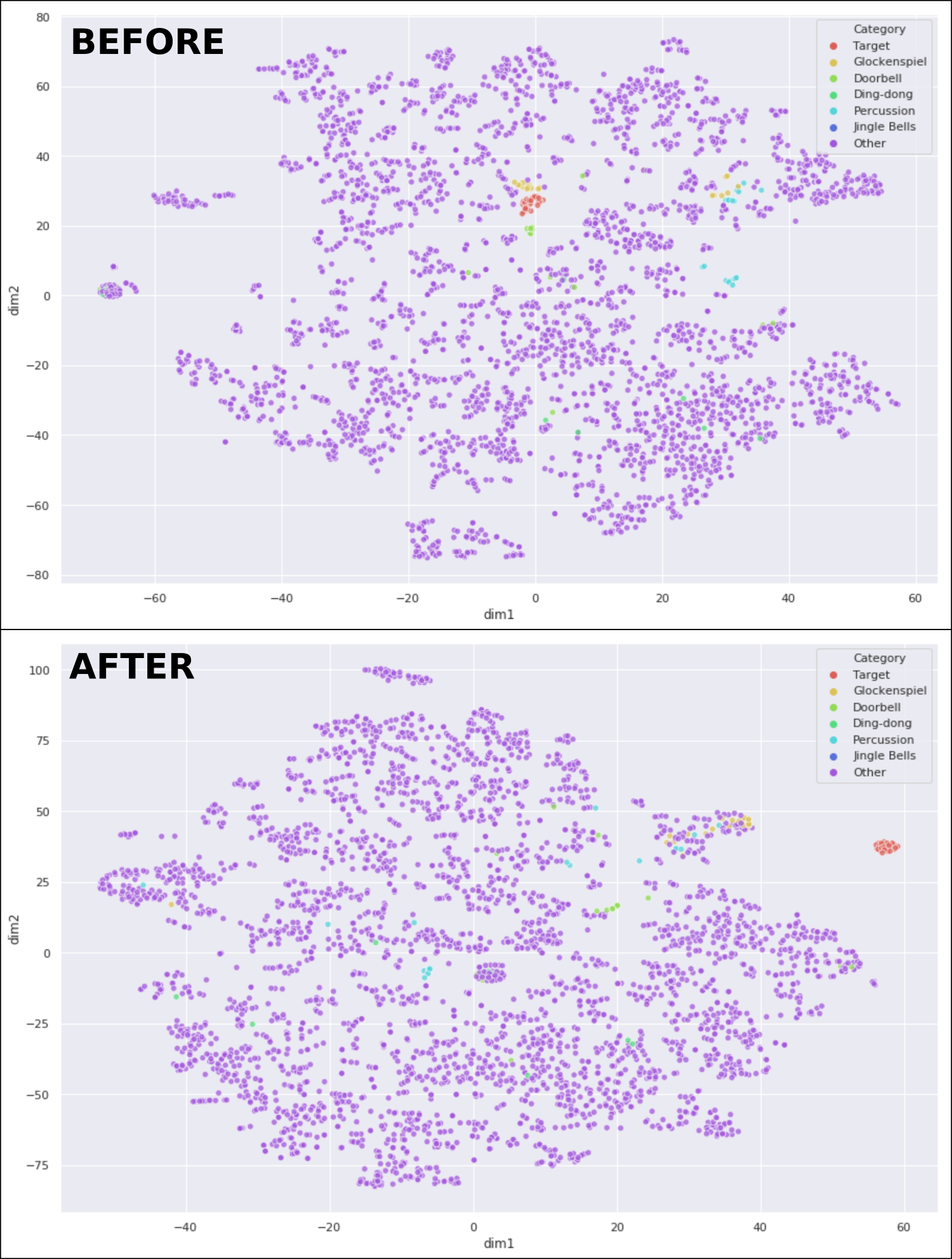

To visualize my fine-tuning of this model, we take a look at the t-SNE maps of before and after in the image below. Before adaptation, it looks like it may be difficult to differentiate the between the target tune (red) and glockenspiels or doorbells (yellow / green) - a potential source of false positives. Afterwards, the red target has moved significantly away from the pack, meaning that it will be easier to identify and the find-tuning has done it’s job. More details of this visualization process can be found in the notebook train/visualize_embedding_data.ipynb.

Before and After Fine-Tuning

Installation guide

To run this project, you might want to a) train and fine-tune the model yourself or b) install onto a Raspberry Pi (or both!). In the first case, you will not be able to fine-tune the network on a Raspberry Pi as the memory requirements are higher than the device allows (as of third generation hardware), but an ordinary laptop or PC should suffice. In the latter case, you do not have to perform the training yourself, as the fine-tuned model can be downloaded from the AWS key: s3://lukerm-ds-open/find-tune/data/.

In both cases, please follow these instructions to get set up, bearing in mind that some of the python requirements need special attention for the Raspberry Pi:

$ git clone git@github.com:lukerm/find-tune ~/find-tune/
$ cd ~/find-tune/
$ sudo apt install libportaudio2 portaudio19-dev
$ pip install --user -r setup/requirements.txt #^
$ setup/install_tf_models.sh
$ export PYTHONPATH=$PYTHONPATH:~/find-tune/:~/tf-models/research/audioset/` # (also set in `~/.profile`)

^tensorflow and resampy require special instructions to install on Raspbian - please see the comments before running.

If you want to train the retrain the model, follow the instructions found in the train folder.

If you are going to install this project on a Raspberry Pi, you’ll also need to run the instructions in setup/install_pi3.sh, which I hope is a catalogue of all of the extra instructions required (but cannot guarantee it). If you do attempt this, please do get in touch, whether you succeed or get stuck (e.g. through creating an Issue).

Production

Once you have completed the installation instructions, either for your laptop or Pi, your device should be production-ready. Please ensure that your (USB) microphone is turned up. As a first step, you can run prod/test_load_model.py to check that the TensorFlow model loads correctly through the Keras interface.

On a Raspberry Pi, this will fail if you do not have enough swap memory allocated (1GB should be sufficient when resizing the swap). This is because loading the model’s weights is a very memory-intensive process requiring more than the 1GB of RAM available on the third-generation device. Even then, it will take several minutes to load the model, and will appear frozen during that time, but patience will prevail! Once it has everything loaded you will get a message and the program will exit.

After that, I recommend moving onto the prod/capture.py file which loads the model before capturing, processing and classifying the sound coming through the microphone. It will do that in chunks of about five seconds (configurable), printing its predictions to the terminal. In addition, if it detects the target track with sufficient confidence, then it will play it back through the system’s main audio output. PulseAudio’s paplay is required for this, so please make sure to follow the instructions in setup/install_pi3.sh (it may already be available on larger Linux distros, such as Ubuntu).

The default audio sink on a Raspberry Pi will not be audible, so you’ll have to re-route via Bluetooth. Find the MAC address of the intended playback device and place it in prod/check_connected.sh, replacing the *’s. Then run that script through to get it to connect (ensure the device is on and that it is not paired to any other device). You may have to run it twice. I had a little difficulty getting my bluetooth device to switch to the high-fidelity “A2DP” mode, and I found that disabling, then re-enabling, the bluetooth service got around this issue, which is what check_connected.sh attempts to do. If that script doesn’t work for you, try first establishing the connection manually using bluetoothctl.

On a Raspberry Pi, you will find that the program that makes predictions takes significantly longer than on an ordinary PC. The resampling operation when preprocessing the audio data is responsible for this. You can speed up this by an order of magnitude by changing a single line in Tensorflow’s models repo. Go to ~/tf-models/research/audioset/vggish_input.py and, on the line that calls resampy.resample, add the argument filter='kaiser_fast' to this function call. This will slightly reduce the quality of resampling (compared to kaiser_best, the default), but predictions are not affected and the speed up is very good.

You can make this fully automated from boot by copying the lines of prod/crontab into your Pi’s main crontab file.

Easter Eggs

It’s possible to hi-jack the relayed tracked and play different songs on particular days (see definitions.py for how to configure this). So, instead of your normal doorbell track, you could be listening to this at Christmas:

If you like this project, please hit the ⭐ button on the GitHub page!
